In this article, (and video above), we calculate what torque is transmitted by the shaft of a gear to give you a better understanding of what you can expect during the FE Exam.
Question:
Two meshing spur gears are arranged such that neither gear is turning and both are in equilibrium. A small gear has a radius of 4 cm. The shaft of this small gear carries a torsional moment of 75 N∙m from an external motor. A larger gear has a radius of 20 cm. Assuming a 100% transmission of efficiency, what torque is transmitted by the shaft of the larger gear?
Solution:

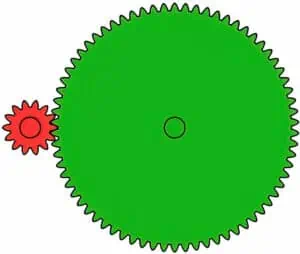

We can visualize the problem using the graphic below. The small gear (red, left) has a radius of 4cm. The large gear (green, right) has a radius of 20cm.
For convenience, we can assume that only one pair of teeth are in contact. As the gears are not moving, we can apply Newton’s Third Law and deduce that the forces are the same for both meshing gear teeth.
As the gears are not moving, we can apply Newton’s Third Law and deduce that the forces are the same for both meshing gear teeth.
Modelling this, we have:
We should recall that the torque resultant from a perpendicular force is that force multiplied by the radius. Therefore:

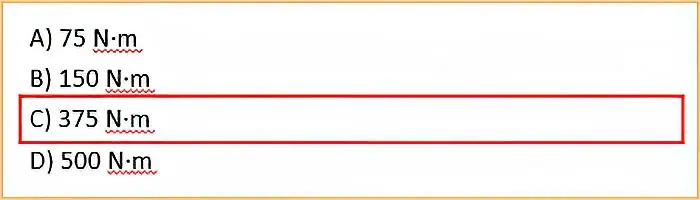

Answer:
The Correct Answer is C
