In this article, (and video above), we solve a civil engineering soil sample problem to give you a better understanding of what you can expect during the FE Exam.
Question:
A soil sample has a total mass of 24g, a volume of 12cm³, an oven-dry mass of 22g, and a specific gravity of 2.4 for the solids.
The void ratio of this soil sample is most nearly:
Solution:

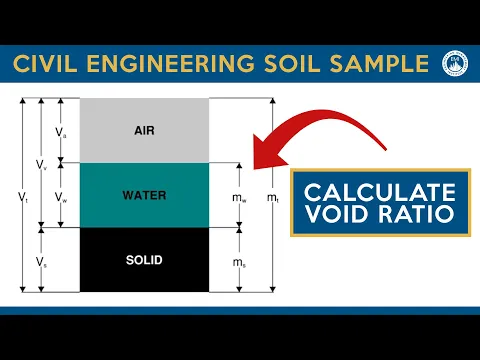

When we calculate the void ratio of soil samples, we should model the soil as a three phase system of air, water, and solid.
(reference p. 259 in FE Handbook v. 10.1)
In this model:
The volume of solids in the soil is given by the following equation:
Where G is the specific gravity of the solids (given in the problem statement as being 2.4) and ρ_w is the density of water.
The volume of the voids is calculated by finding the difference between the total volume and volume of the solids:
The void ratio is given by the ratio of the volume of the voids divided b the volume of the solids (not the total volume):
Answer:
The correct answer is B
This Episode Is Brought to You by PPI
PPI has helped engineers achieve their licensing goals since 1975. Passing the FE and PE exams can open doors to career advancement and new opportunities. Check out PPI’s wide range of prep options, including Live Online courses, OnDemand courses, and digital study tools to help prepare you to pass your licensing exam here.
I hope you found this week’s FE Environmental engineering exam prep question helpful. In upcoming articles, I will answer more FE Exam questions and run through more practice problems. We publish videos bi-weekly on our Pass the FE Exam YouTube Channel. Be sure to visit our page here and click the subscribe button as you’ll get expert tips and tricks – to ensure your best success – that you can’t get anywhere else. Believe me, you won’t want to miss a single video.
Lastly, I encourage you to ask questions in the comments of the videos or here on this page and I’ll read and respond to them in future videos. So, if there’s a specific topic you want me to cover or answer, we have you covered.
I’ll see you next week.
